Commercial Sharp Cash Registers
Commercial Sharp Cash Registers
Sharp UP-820F Cash Register
*The FREE Credit Card and Gift Card Interface is available when you sign up with
Mercury Payment Systems as you Visa/MasterCard Merchant Services Provider. Please
click here for details
Free Integrated Credit Card Option
Bar Code Sacnner options for cash registers
Bar Code Scanners for Sharp Cash Registers

You can connect a wide variety of bar code scanners to most Sharp Cash
Registers. Single line, Omni Directions, with trigger or with out. Scanning speeds
up your lines and provides a great level of accuracy

Click the following to choose the best
Bar Code Scanner for Sharp Cash
Registers
Options, Supplies, and Accessories for the Sharp UP-820F
cash register keyboard cover
Protect your keyboard with a cash register keyboard cover or
replace your existing worn out Keyboard Cover with a new
one. Click here for
Sharp UP-820F Cash Register Keyboard
Cover
software for Sharp Cash Registers
Computer Interface for the Sharp UP-810F Cash Register.
The Sharp UP-810F can communicate to a computer for
programming and reporting. Connects directly or over the
internet. For more information click here
PC POLL Software
for Sharp Cash Registers
Sharp Cash Register cash drawer till
Click the following link to order an additional or replacement
cash drawer insert for this Cash Register or most other Sharp
Cash Register
Sharp Cash Drawer Insert for the Sharp UP-820
Cash Register
More Detail on the Sharp UP-820F Cash Register
Design
  • Cash drawer 7 bill and 5 coin compartment drawer, standard
  • Keyboard Type Flat micro-motion keyboard design with 144 key locations
Display
  • Customer Display LED pop-up, 1 line, 7 segments, 7 digit numeric
  • Operator Display Adjustable 320 x 240 full dot graphic backlit LCD with tilt mechanism, 20 digits
    per line
Connectivity
  • Communications Ethernet LAN with TCP/IP protocol, 2 port RS-232 serial std., up to 4 ports
    maximum
Options
  • Optional Accessories Available through your authorized Sharp Dealer
Print Specification
  • Printer Thermal, 2 station receipt journal with receipt on/off function and graphic logo printing
Register Specification
  • CPU Flash ROM Enhanced Microprocessor
  • Recommended Temperature 32 to 104º F (0 to 40º C)
Power
  • Power Consumption Standby: 15W, Working: 57W
  • Power Source 120v AC (+/- 10%) 60 Hz
Weight & Dimensions
  • Dimensions 17.5"(w) x 18.3"(d) x 12.3"(h)
  • Weight 36.2 lbs.

Product specifications and design are subject to change without notice.
More views of the Sharp UP-820F Cash Register
UP-800 Cash Register from Sharp Screen Shot
Sharp UP-820F Flow Chart
all 3 models of the sharp UP-800 Series

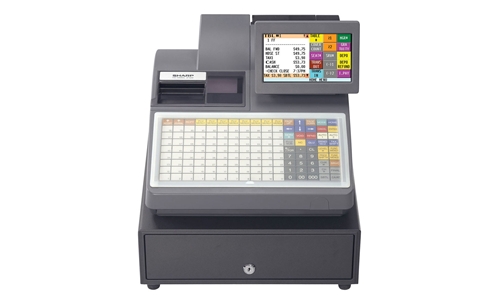

Sharp UP 820 Cash Register

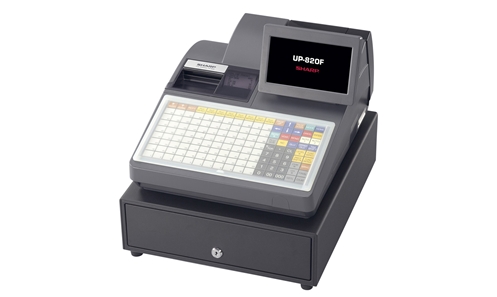

Sharp Cash Register Model UP-820F
2 1/4" Thermal Paper Rolls 200' per roll 50 rolls per case
$59.95
50 roll case of 2 1/4" thermal receipt paper. Don't get fooled by other sites
selling tiny rolls, these are the full size 200' per roll!
sharp ER-520 Receipt Paper
Information for the Sharp UP-820F
sharp UP-820F Cash Register
Sharp UP-820F Cash Register $1253.00
The UP-820F offers advanced, easy-to-use features that allow you to customize your Point-of-Sale System for
your hospitality or retail needs. This two-station printer and flat keyboard POS System offers enhanced
software features combined with a new innovative touch screen and programmable keyboard that are designed
to increase speed of service when entering transactions. With integrated easy-to-use software and flexible
configuration options, the UP-820F can easily grow as your business needs evolve.

Features
  • Color LCD Touch Panel - The 6.5" color LCD backlit display details eight lines of on-screen information,
    making it easy for servers to verify orders and confirm sales data.
  • Quick Customer Service - Delivering enhanced speed as well as more accurate order entry. Time-saving
    features include fast keyboard entry, touch-screen operation for modifiers and choices, plus flexible
    function menus that combine special functions for fast and efficient actions.
  • Easy-To-Use Interface - Automated prompts and simple, customized screens make it easy for staff and
    managers to enter information quickly and accurately.
  • Enhanced Control With Standard Ethernet - Can function as a central terminal for all others at the
    location. Ethernet capability enables POS data to be combined centrally, so you can save time closing
    out and totaling.
  • Sharp Intelligent Data Enterprise (SIDE) - Designed for businesses with multiple locations, SIDE
    leverages the power of the internet to view automatically polled data from multiple stores.
  • Back Office Software Solution - Easily increase the functionality of your Sharp POS system with PC Poll
    Software, a truly dynamic solution for providing the capability for advanced polling, reporting and
    programming.
  • Additional Features - Compact cabinet design, Standard 5 bill/6 coin cash drawer, full range of
    PLU/UPC/EAN codes, Price Inquiry/change for UPC, Group discounts, Tray subtotal, Multiple menu
    levels, Tip and edit tip function, Macro Function keys, PLU menu keys, credit/debit/gift card interface
    options.
